TV Macro Lenses

FIXED MAGNIFICATION LENSES

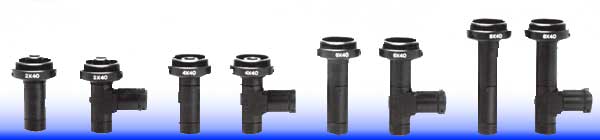

Fixed magnification lenses image

Fixed Magnification Lenses for 40mm(W.D.),1/2inch Format

Specifications of Fixed Magnification Lenses for 40mm(W.D.),1/2inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
2-40 X2.00 - 0.28mm 2.4x3.2 4.8μm 0.07 0.6% straight
2D-40 X2.00 - 0.28mm 2.4x3.2 4.8μm 0.07 0.6% coaxial
4-40 X4.00 - 0.14mm 1.2x1.6 4.8μm 0.07 0.3% straight
4D-40 X4.00 - 0.14mm 1.2x1.6 4.8μm 0.07 0.3% coaxial
6-40 X6.00 - 0.095mm 0.8x1.06 4.8μm 0.07 0.2% straight
6D-40 X6.00 - 0.095mm 0.8x1.06 4.8μm 0.07 0.2% coaxial
8-40 X8.00 - 0.071mm 0.6x0.8 4.8μm 0.07 0.1% straight
8D-40 X8.00 - 0.071mm 0.6x0.8 4.8μm 0.07 0.1% coaxial

Fixed Magnification Lenses for 65mm(W.D.),1/2Inch Format

Specifications of Fixed Magnification Lenses for 65mm(W.D.),1/2Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
1-65
New		 X1.00 F14.2 1140μm - 9.6μm 0.035 0.11% straight
1D-65
New		 X1.00 F14.2 1140μm - 9.6μm 0.035 0.11% coaxial

Fixed Magnification Lenses for 65mm(W.D.),2/3Inch Format

Specifications of Fixed Magnification Lenses for 65mm(W.D.),2/3Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
2-65 X2.00 F15 300μm 2.4x3.2 5.1μm 0.066 -0.03% straight
2D-65 X2.00 F15 300μm 2.4x3.2 5.1μm 0.066 -0.03% coaxial
4-65 X4.00 F26.8 130μm 1.2x1.6 4.6μm 0.073 0.06% straight
4D-65 X4.00 F26.8 130μm 1.2x1.6 4.6μm 0.073 0.06% coaxial
6-65 X6.00 - 0.1mm 0.8x1.06 4.8μm 0.076 0.1% straight
6D-65 X6.00 - 0.1mm 0.8x1.06 4.8μm 0.076 0.1% coaxial
8-65 X8.00 - 0.065mm 0.6x0.8 4.4μm 0.076 0.1% straight
8D-65 X8.00 - 0.065mm 0.6x0.8 4.4μm 0.076 0.1% coaxial

Fixed Magnification Lenses for 70mm(W.D.),1/2Inch or 2/3Inch Format

Specifications of Fixed Magnification Lenses for 70mm(W.D.)
Item No. Magnification Aperture Depth of Field(mm) Field of View(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
0.55-70 X0.55 - 1.2mm 8.73x11.6(1/2"),
6.55x8.73(1/3"),
4.9x6.5(1/4")		 13μm 0.025 -0.04% straight
0.55D-70 X0.55 - 1.2mm 8.73x11.6(1/2"),
6.55x8.73(1/3"),
4.9x6.5(1/4")		 13μm 0.025 -0.04% coaxial
0.72-70 X0.72 - 1.2mm 6.67x8.89(1/2"),
5x6.67(1/3"),
3.8x5(1/4")		 13μm 0.025 0% straight
0.72D-70 X0.72 - 1.2mm 6.67x8.89(1/2"),
5x6.67(1/3"),
3.8x5(1/4")		 13μm 0.025 0% coaxial
1-70 X1 - 1.2mm 4.8x6.4(1/2"),
3.6x4.8(1/3"),
2.7x3.6(1/4")		 13μm 0.025 0% straight
1D-70 X1 - 1.2mm 4.8x6.4(1/2"),
3.6x4.8(1/3"),
2.7x3.6(1/4")		 13μm 0.025 0% coaxial
3-70 X3 - 0.2mm 1.6x2.13(1/2"),
1.2x1.6(1/3"),
0.9x1.2(1/4")		 6μm 0.063 0.2% straight
3D-70 X3 - 0.2mm 1.6x2.13(1/2"),
1.2x1.6(1/3"),
0.9x1.2(1/4")		 6μm 0.063 0.2% coaxial
5-70 X5 - 0.2mm 0.96x1.28(1/2"),
0.72x0.96(1/3"),
0.54x0.72(1/4")		 6μm 0.063 0.2% straight
5D-70 X5   0.2mm 0.96x1.28(1/2"),
0.72x0.96(1/3"),
0.54x0.72(1/4")		 6μm 0.063 0.2% coaxial

Fixed Magnification Lenses for 75mm(W.D.),2/3Inch Format

Specifications of Fixed Magnification Lenses for 75mm(W.D.),2/3Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
MQM1000 X2.00 F13.0 +/-0.2mm 3.3X4.4 8μm 0.076 0.2% coaxial
MQM2000 X2.00 F13.0 +/-0.2mm 3.3X4.4 8μm 0.076 0.2% straight
MQJ1000 X4.00 F26.0 +/-0.1mm 1.7X2.2 4μm 0.076 0.2% coaxial
MQJ2000 X4.00 F26.0 +/-0.1mm 1.7X2.2 4μm 0.076 0.2% straight
MQK1000 X6.00 F38.0 +/-0.07mm 1.1X1.5 3μm 0.076 0.2% coaxial
MQK2000 X6.00 F38.0 +/-0.07mm 1.1X1.5 3μm 0.076 0.2% straight
MQL1000 X8.00 F59.0 +/-0.06mm 0.8X1.1 3μm 0.076 0.2% coaxial
MQL2000 X8.00 F59.0 +/-0.06mm 0.8X1.1 3μm 0.076 0.2% straight

Fixed Magnification Lenses for 90mm(W.D.),2/3Inch Format

Specifications of Fixed Magnification Lenses for 90mm(W.D.),2/3Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
YRJ5000 X0.14 F4.6 +/-5.0mm 47X63 130μm 0.011 0.1% straight
YRJ7000 X0.14 F6.4 +/-7.0mm 47X63 130μm 0.011 0.1% straight
YRJ3000 X0.14 F9.0 +/-9.0mm 47X63 130μm 0.011 0.1% straight
YJS5000 X0.30 F4.6 +/-1.2mm 22X29 60μm 0.021 0.1% straight
YJS6000 X0.30 F7.3 +/-2.0mm 22X29 60μm 0.021 0.1% straight
YJS4000 X0.30 F10.0 +/-3.0mm 22X29 60μm 0.021 0.1% straight
YJQ4000 X0.50 F8.4 +/-0.8mm 13X18 36μm 0.03 0.1% straight
YJQ3000 X0.50 F12.0 +/-1.2mm 13X18 36μm 0.03 0.1% straight
YRH4000 X1.00 F8.4 +/-0.3mm 6.6X8.8 18μm 0.045 0.1% straight
YRH2000 X1.00 F11.0 +/-0.4mm 6.6X8.8 18μm 0.045 0.1% straight
YRH3000 X1.00 F16.0 +/-0.5mm 6.6X8.8 18μm 0.045 0.1% straight

Fixed Magnification Lenses for110mm(W.D.),1/2Inch Format

Specifications of Fixed Magnification Lenses for110mm(W.D.),1/2Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
05-110 X0.5 F11.4 2.4mm 9.6x12.8 16μm 0.022 0.02% straight
05D-110 X0.5 F11.4 2.4mm 9.6x12.8 16μm 0.022 0.02% coaxial
1-110 X1.0 F20 1600um 4.8x6.4 13.4μm 0.025 0.06% straight
1D-110 X1.0 F20 1600um 4.8x6.4 13.4μm 0.025 0.06% coaxial

Fixed Magnification Lenses for110mm(W.D.),2/3Inch Format

Specifications of Fixed Magnification Lenses for110mm(W.D.),2/3Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
2-110 X2.0 F24.6 490um 3.3x4.4 8.4μm 0.040 -0.03% straight
2D-110 X2.0 F24.6 490um 3.3x4.4 8.4μm 0.040 -0.03% coaxial
4-110 X4.0 F40 0.22mm 1.65x2.2 7μm 0.050 0.34% straight
4D-110 X4.0 F40 0.22mm 1.65x2.2 7μm 0.050 0.34% coaxial
6-110 X6.0 F60 0.19mm 1.1x1.47 7μm 0.050 0.16% straight
6D-110 X6.0 F60 0.19mm 1.1x1.47 7μm 0.050 0.16% coaxial

Fixed Magnification Lenses for 156mm(W.D.),2/3Inch Format

Specifications of Fixed Magnification Lenses for 156mm(W.D.),2/3Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
2-156 X2.00 F25.0 0.44mm 3.3x4.4 9μm 0.04 0.07% straight
2D-156 X2.00 F25.0 0.44mm 3.3x4.4 9μm 0.04 0.07% coaxial

Fixed Magnification Lenses for 156mm(W.D.),1/2Inch Format

Specifications of Fixed Magnification Lenses for 156mm(W.D.),1/2Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
1-156 X1.0 F16.7 1.0mm 4.8x6.4 12μm 0.03 0.15% straight
1D-156 X1.0 F16.7 1.0mm 4.8x6.4 12μm 0.03 0.15% coaxial

Fixed Magnification Lenses for 220mm(W.D.),1/2Inch Format

Specifications of Fixed Magnification Lenses for 220mm(W.D.),1/2Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
1D-220 X1.0 F20 1.24mm 4.8x6.4 14μm 0.025 0.1% coaxial
2D-220 X2.0 F33 0.67mm 2.4x3.2 11μm 0.03 0.1% coaxial
3D-220 X3.0 F43 0.41mm 1.6x2.1 9.6μm 0.035 0.1% coaxial

Fixed Magnification Lenses for 290mm(W.D.),1/2Inch Format

Specifications of Fixed Magnification Lenses for 290mm(W.D.),1/2Inch Format
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
1D-290 X1.0 F20 1.24mm 4.8x6.4 13μm 0.025 0.15% Coaxial
2D-290 X2.0 F33 0.67mm 2.4x3.2 11μm 0.03 0.15% coaxial
3D-290 X3.0 F43 0.41mm 1.6x2.1 9.6μm 0.035 0.15% coaxial

Fixed Magnification Lenses for others

Specifications of Fixed Magnification Lenses for others
Item No. Magnification Aperture Depth of Field Object size(mm) Resoltion power(object) NA TV Distortion
(LessThan)		 Notes
1472 172mm X0.145 - +/-17 33X44 94μm - 1/2Inch
MRW 70mm X0.30 - +/-1.4 21X31 60μm - 2/3Inch
