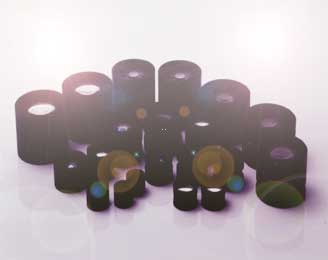

Goyo Optical Inc,established in 1976, produces a wide variety of lenses used in Machine Vision and CCTV Surveillance.Lenses include Megapixel,Day and Night,1inch format,line scan with f-Mount,F0.95,3CCD camera,UV,Telecentric,TV Macro,Micro Head,Scanner and Projection Zoom. Scanner Lenses
DOCUMENTSIZE:A2
| Item No. | Focal Length | FNo. | Const ruction |
Image Size |
O.I. Distance |
Magnifi cation |
Half Angle |
Illumina tion(%) |
Distor tion(%) |
Barrel Size | Resolution (DPI) |
Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18-60 | 246.60mm | 11.0 | 4-6 | 410.00mm | 987.70mm | 1.0000 | 22.6 | 72 | 0 | 53.0~63.2 | 810 | - |
DOCUMENTSIZE:A3
| Item No. | Focal Length | FNo. | Const ruction |
Image Size |
O.I. Distance |
Magnifi cation |
Half Angle |
Illumina tion(%) |
Distor tion(%) |
Barrel Size | Resolution (DPI) |
Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18- 15 | 25.21mm | 4.8 | 4-4 | 26.14mm | 346.30mm | 0.0880 | 25.5 | 66 | -0.10 | 20.0X22.8 | 200 | - |
| 18- 24 | 31.45mm | 4.8 | 3-3 | 26.75mm | 426.67mm | 0.0880 | 20.7 | 75 | -0.20 | 17.0X20.0 | 200 | - |
| 18- 33 | 39.77mm | 4.0 | 5-6 | 34.06mm | 434.00mm | 0.1102 | 21.2 | 76 | -0.08 | 35.0X35.0 | 400 | - |
| 18- 34 | 40.48mm | 3.5 | 4-6 | 33.60mm | 438.52mm | 0.1120 | 20.7 | 76 | -0.12 | 30.0X30.5 | 400 | - |
| 18- 44 | 61.65mm | 5.0 | 4-5 | 67.20mm | 409.50mm | 0.2200 | 24.0 | 68 | +0.20 | 34.0X37.0 | 400 Color | - |
| 18- 47 | 70.54mm | 8.5 | 4-5 | 42.90mm | 703.00mm | 0.1260 | 15.3 | 85 | +0.10 | 38.0X48.0 | 400 Color | - |
| 18- 41 | 53.77mm | 4.0 | 4-5 | 51.10mm | 434.00mm | 0.1654 | 22.2 | 73 | -0.45 | 35.0X35.0 | 600 | - |
| 18- 43 | 60.10mm | 6.0 | 4-5 | 64.66mm | 409.50mm | 0.2120 | 24.0 | 68 | +0.20 | 34.0X37.0 | 600 Color | - |
| 18- 51 | 81.98mm | 5.6 | 4-5 | 68.07mm | 537.50mm | 0.2203 | 19.2 | 78 | +0.10 | 38.0X46.0 | 600 Color | - |
| 18- 48 | 71.05mm | 6.5 | 4-5 | 55.50mm | 546.50mm | 0.1770 | 18.4 | 79 | +0.01 | 38.0X49.0 | 650 | - |
| 18- 53 | 84.67mm | 5.0 | 4-6 | 72.00mm | 509.00mm | 0.2362 | 19.4 | 78 | -0.20 | 56.0X72.0 | 666 Color | - |
| 18- 49 | 71.22mm | 6.0 | 6-8 | 72.00mm | 440.00mm | 0.2360 | 22.2 | 72 | +0.30 | 62.0X69.0 | 667 Color | - |
DOCUMENTSIZE:A4
| Item No. | Focal Length | FNo. | Const ruction |
Image Size |
O.I. Distance |
Magnifi cation |
Half Angle |
Illumina tion(%) |
Distor tion(%) |
Barrel Size | Resolution (DPI) |
Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18- 26 | 35.60mm | 4.0 | 3-4 | 28.10mm | 353.00mm | 0.1300 | 19.0 | 71 | +0.01 | 18.0X21.0 | 300 | - |
| 18- 8 | 21.98mm | 5.7 | 3-3 | 20.41mm | 280.50mm | 0.0945 | 22.7 | 71 | -0.20 | 14.0X16.7 | 300 Color | - |
| 18- 14 | 24.35mm | 4.0 | 4-4 | 23.80mm | 276.53mm | 0.1102 | 23.4 | 70 | -0.23 | 20.0X21.5 | 400 | - |
| 18- 16 | 27.41mm | 3.5 | 4-6 | 23.80mm | 301.40mm | 0.1102 | 21.6 | 73 | -0.10 | 22.0X22.0 | 400 | - |
| 18- 12 | 24.18mm | 5.7 | 4-4 | 23.80mm | 275.60mm | 0.1102 | 23.4 | 70 | +0.06 | 20.0X19.0 | 400 Color | - |
| 18- 22 | 30.88mm | 6.0 | 4-4 | 35.70mm | 260.00mm | 0.1653 | 25.9 | 64 | -0.20 | 18.0X21.8 | 600 | - |
| 18- 39 | 47.92mm | 5.0 | 3-3 | 36.71mm | 398.20mm | 0.1654 | 18.0 | 78 | -0.10 | 18.0X16.0 | 600 | - |
| 18- 13 | 24.26mm | 6.5 | 3-3 | 26.78mm | 250.10mm | 0.1240 | 25.9 | 64 | -0.19 | 14.0X14.0 | 600 Color | - |
| 18- 25 | 32.46mm | 7.0 | 3-3 | 35.70mm | 270.00mm | 0.1654 | 25.0 | 66 | -0.20 | 16.0X14.0 | 600 Color | - |
| 18- 30 | 39.36mm | 7.0 | 3-4 | 40.59mm | 300.00mm | 0.1880 | 23.2 | 71 | -0.02 | 18.0X18.0 | 600 Color | - |
| 18- 36 | 43.25mm | 4.0 | 4-5 | 35.72mm | 349.10mm | 0.1654 | 19.5 | 77 | -0.11 | 26.0X30.0 | 600 Color | - |
| 18- 29 | 39.31mm | 6.0 | 3-3 | 40.80mm | 300.00mm | 0.1890 | 23.3 | 70 | -0.20 | 18.0X18.0 | 800 Color | - |
| 18- 27 | 36.73mm | 7.0 | 4-4 | 40.80mm | 280.50mm | 0.1890 | 24.6 | 63 | +0.10 | 16.0X19.0 | 1200 Color | - |
| 18- 28 | 39.30mm | 6.0 | 3-4 | 40.80mm | 300.00mm | 0.1890 | 23.3 | 70 | -0.12 | 18.0X18.0 | 1200 Color | - |
| 18- 31 | 39.56mm | 6.5 | 3-4 | 40.80mm | 300.00mm | 0.1889 | 23.1 | 70 | -0.19 | 16.0X18.0 | 1200 Color | - |
| 18- 32 | 39.59mm | 7.5 | 3-3 | 40.80mm | 300.20mm | 0.1889 | 23.5 | 69 | -0.06 | 15.0X15.0 | 1200 Color | - |
| 18- 35 | 40.70mm | 7.5 | 4-5 | 40.82mm | 301.00mm | 0.1890 | 22.9 | 71 | +0.20 | 23.0X26.5 | 1200 Color | - |
| 18- 37 | 46.74mm | 6.0 | 3-4 | 40.80mm | 353.00mm | 0.1889 | 19.9 | 77 | -0.30 | 18.0X16.0 | 1200 Color | - |
| 18- 38 | 47.11mm | 6.0 | 3-3 | 53.54mm | 300.10mm | 0.2480 | 24.1 | 68 | -0.30 | 18.0X15.0 | 1200 Color | - |
| 18- 40 | 48.72mm | 6.0 | 4-5 | 53.54mm | 300.00mm | 0.2480 | 23.8 | 69 | +0.30 | 26.0X29.0 | 1200 Color | - |
| 18- 46 | 68.73mm | 7.0 | 4-6 | 71.43mm | 354.50mm | 0.3307 | 21.6 | 73 | -0.16 | 34.0X42.0 | 1200 Color | - |
| 18- 54 | 89.72mm | 7.0 | 4-6 | 81.64mm | 450.00mm | 0.3780 | 17.7 | 81 | -0.06 | 33.0X43.5 | 1200 Color | - |
| 18- 56 | 92.62mm | 7.0 | 4-8 | 83.01mm | 450.00mm | 0.3843 | 17.8 | 81 | -0.09 | 40.0X55.0 | 1220 Color | - |
DOCUMENTSIZE:A6
| Item No. | Focal Length | FNo. | Const ruction |
Image Size |
O.I. Distance |
Magnifi cation |
Half Angle |
Illumina tion(%) |
Distor tion(%) |
Barrel Size | Resolution (DPI) |
Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18- 3 | 11.68mm | 4.5 | 3-3 | 11.76mm | 129.50mm | 0.1120 | 24.1 | 69 | -0.04 | 10.0X11.5 | 200 | - |
| 18- 10 | 23.66mm | 12.5 | 3-3 | 28.00mm | 143.79mm | 0.2667 | 26.4 | 64 | +0.17 | 11.5X14.0 | 250 | - |
| 18- 7 | 17.71mm | 4.5 | 4-4 | 23.52mm | 122.46mm | 0.2240 | 29.6 | 64 | +0.04 | 14.0X14.9 | 400 | - |
| 18- 58 | 110.13mm | 5.6 | 6-7 | 74.00mm | 439.30mm | 0.7087 | 11.6 | 90 | -0.20 | 52.0X71.0 | 2520 Color | - |
DOCUMENTSIZE:B4
| Item No. | Focal Length | FNo. | Const ruction |
Image Size |
O.I. Distance |
Magnifi cation |
Half Angle |
Illumina tion(%) |
Distor tion(%) |
Barrel Size | Resolution (DPI) |
Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18- 9 | 23.13mm | 4.4 | 3-3 | 22.53mm | 313.71mm | 0.0880 | 23.9 | 69 | -0.16 | 17.0~17.0 | 200 | - |
| 18- 19 | 27.99mm | 5.3 | 3-3 | 28.67mm | 313.09mm | 0.1120 | 24.3 | 69 | -0.14 | 17.0~17.0 | 200 | - |
DOCUMENT SIZE:OTHERS
| Item No. | Focal Length | FNo. | Const ruction |
Image Size |
O.I. Distance |
Magnifi cation |
Half Angle |
Illumina tion(%) |
Distor tion(%) |
Barrel Size | Resolution (DPI) |
Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18- 1 | 9.53mm | 5.6 | 3-3 | 6.30mm | 45.10mm | 0.3591 | 14.1 | 87 | -0.06 | 10.0X10.0 | 820 | 17.4 |
| 18- 20 | 29.40mm | 4.0 | 4-5 | 16.38mm | 124.40mm | 0.6970 | 8.9 | 95 | +0.10 | 16.0X23.0 | 1800 Color | 23.5 |
| 18- 21 | 30.00mm | 6.3 | 4-4 | 21.60mm | 128.50mm | 0.6142 | 12.4 | 91 | +0.03 | 18.0X25.0 | 1950 Color | 35 |
| 18- 23 | 30.92mm | 5.6 | 4-5 | 30.30mm | 127.70mm | 0.8079 | 15.0 | 87 | -0.11 | 18.0X20.0 | 2700 Color | 37.5 |
| 18- 2 | 9.53mm | 4.0 | 4-4 | 12.32mm | 65.93mm | 0.2240 | 28.8 | 59 | -0.19 | 14.0X14.0 | 400 | 55 |
| 18- 55 | 92.00mm | 8.2 | 4-8 | 60.00mm | 334.60mm | 1.0000 | 9.3 | 94 | 0 | 34.0X66.0 | 2800 Color | 60 |
| 18- 6 | 17.36mm | 12.5 | 3-3 | 28.00mm | 82.40mm | 0.4590 | 27.7 | 60 | -0.15 | 10.5X12.0 | 250 | 61 |
| 18- 5 | 14.98mm | 4.0 | 3-3 | 14.34mm | 102.06mm | 0.2240 | 20.8 | 76 | -0.08 | 12.0X15.0 | 400 | 64 |
| 18- 4 | 12.67mm | 12.0 | 3-3 | 21.00mm | 70.00mm | 0.3230 | 30.8 | 53 | +0.23 | 8.0X 9.0 | 260 | 65 |
| 18- 11 | 23.94mm | 16.0 | 3-3 | 28.67mm | 117.40mm | 0.4125 | 24.0 | 70 | 0 | 11.0X11.0 | 400 | 69.5 |
| 18- 57 | 108.37mm | 5.6 | 8-8 | 74.00mm | 439.30mm | 0.9000 | 10.2 | 94 | +0.01 | 52.0X47.0 | 2500 Color | 82.2 |
| 18- 59 | 113.06mm | 5.0 | 4-8 | 83.90mm | 450.00mm | 0.9600 | 10.7 | 91 | +0.02 | 40.0X65.0 | 3050 Color | 87.4 |
| 18- 18 | 27.75mm | 4.0 | 4-4 | 29.18mm | 285.00mm | 0.1260 | 24.5 | 67 | -0.01 | 21.0X21.0 | 400 Color | 231.6 |
| 18- 50 | 75.00mm | 7.0 | 4-5 | 37.50mm | 901.40mm | 0.1000 | 12.9 | 88 | +0.05 | 30.0X46.5 | 508 Color | 375 |
| 18- 45 | 68.60mm | 5.6 | 4-5 | 55.50mm | 714.00mm | 0.1186 | 19.9 | 77 | -0.08 | 38.0X42.0 | 430 | 468 |
| 18- 52 | 82.12mm | 6.5 | 5-7 | 69.94mm | 910.10mm | 0.1101 | 20.9 | 75 | -0.20 | 40.0X52.0 | 300 Color | 635 |
| 18- 42 | 55.57mm | 6.5 | 5-7 | 42.72mm | 940.00mm | 0.0668 | 19.8 | 77 | -0.10 | 30.0X40.0 | 424 Color | 639.8 |
| 18- 17 | 27.44mm | 9.0 | 3-4 | 20.16mm | 1252.80mm | 0.0230 | 19.7 | 79 | -0.22 | 18.0X16.3 | 40 | 880 |
