Goyo Optical Inc,established in 1976, produces a wide variety of lenses used in Machine Vision and CCTV Surveillance.Lenses include Megapixel,Day and Night,1inch format,line scan with f-Mount,F0.95,3CCD camera,UV,Telecentric,TV Macro,Micro Head,Scanner and Projection Zoom. CCTV Lenses
Megapixel lenses
- 1/3"Megapixel Lenses
- 1/2"Megapixel Lenses
- 1/3"Megapixel Day&Night Lens
- 1/2.7" Megapixel Day&Night Lense
- 1/2"Megapixel Day&Night Lenses
- 1/1.8" Megapixel Day&Night Lenses
- Megapixel Manual zoom Lens
- Megapixel Motorized Zoom Lens
- Megapixel Day&Night Motorized Varifocal Zoom Lens
- Megapixel Lenses PDF (2,171KB)

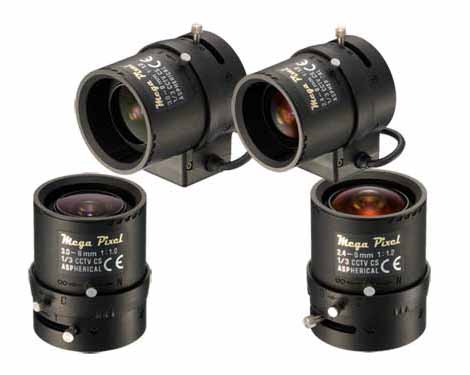

1/3"Megapixel Lenses
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GMMP1308010S | 3-8mm | F1.0-Close | 92.5°x68.2° - 35.4 °x26.5° |
0.3m | Ø50x55 | 65g | CS | Aspherical, Manual Iris |
| GAMP1308010BS4 | 3-8mm | F1.0-360 | 92.5°x68.2° - 35.4 °x26.5° |
0.3m | Ø44x60x55 | 75g | CS | Aspherical, DC-Drive, Auto Iris |
| GMMP130100S | 3-10mm | F1.4-Close | 110.2°x88.5° -34.9 °x28.0° |
0.3m | Ø38x58 | 90g | CS | Aspherical, Manual Iris |
| GAMP130100BS4 | 3-10mm | F1.4-360 | 110.2°x88.5° -34.9 °x28.0° |
0.3m | Ø38x45.5x58 | 80g | CS | Aspherical, DC-Drive, Auto Iris |
| GMMP12460S | 2.4-6mm | F1.2-Close | 111.3°x83.5° -47.1 °x35.4° |
0.3m | Ø45x60 | 65g | CS | Aspherical, Manual Iris |
| GAMP12460BS4 | 2.4-6mm | F1.2-360 | 111.3°x83.5° -47.1 °x35.4° |
0.3m | Ø45x60x55 | 75g | CS | Aspherical, DC-Drive, Auto Iris |
| GAMP19022BS4 | 9-22mm | F1.6-360 | 30°x20° -13°x10° |
0.3m | Ø34x45x45 | 70g | CS | DC-Drive, Auto Iris |
| GMMP15050S | 5-50mm | F1.4-Close | 53.8°x40.3° -5.5°x4.2° |
1.0m | Ø46x61 | 65g | CS | Aspherical, Manual Iris |
| GAMP15050BS4 | 5-50mm | F1.4-360 | 53.8°x40.3° -5.5°x4.2° |
1.0m | Ø46x58x62 | 80g | CS | Aspherical, DC-Drive, Auto Iris |
1/2"Megapixel Lenses
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GMMP21414CS | 1.4mm | F1.4-Close | 185°(fish eye) | 0.1m | Ø39x66 | 100g | CS | Manual iris |
| GMMP24010S | 4-10mm | F1.8-Close | 94.8°x69.0° -37.3°x28.0° |
0.3m | Ø38x48 | 90g | CS | Manual Iris |
| GAMP24010BS4 | 4-10mm | F1.8-360 | 94.8°x69.0° -37.3°x28.0° |
0.3m | Ø38x45x50 | 95g | CS | DC-Drive, Auto Iris |
| GMMP24012C | 4 - 12mm | F1.4-Close | 100.5°x73.4° -33.4°x25.1° |
0.3m | Ø40x55 | 58g | C | Aspherical, Manual Iris |
| GAMP24012BC4 | 4 - 12mm | F1.4-360 | 100.5°x73.4° -33.4°x25.1° |
0.3m | Ø40x56x53 | 68g | C | Aspherical, DC-Drive, Auto Iris |
1/3" Megapixel Day&Night Lens
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GAMPDN13380BS4 | 3.3-8mm | F1.4-360 | 87.9°x64.5° -35.0°x26.2° |
0.5m | Ø44.2x53.5x52.8 | 80g | CS | DC-Drive, Day&Night, Auto Iris |
| GM3MPDN12880S | 2.8-8mm | F1.2-Close | 101.1°x72.9° -35.8°x26.8° |
0.3m | Ø43.2x54.1 | 65g | CS | 3 Megapixel(more than Full HD 1080P),Day&Night, Aspherical, Manual |
| GA3MPDN12880BS4 | 2.8-8mm | F1.2-360 | 101.1°x72.9° -35.8°x26.8° |
0.3m | Ø43.2x58.1x54.1 | 75g | CS | 3 Megapixel(more than Full HD 1080P), Day&Night, Aspherical, DC-Drive, Auto Iris |
| GA3MPDN128120BS4 | 2.8-12mm | F1.4-360 | 25°x18.8° -97.9°x72.5° |
0.3m | Ø41.4x46.2x65.5 | 70g | CS | 3 Megapixel(Full HD), Day&Night ,Aspherical, DC-Drive Auto Iris |
| GA2MPDN15050BS4 | 5-50mm | F1.6-360 | 53°x40° -5.6°x4.2° |
1m | Ø50x77x66 | 115g | CS | 2MP, Day&Night |
1/2.7" Megapixel Day&Night Lense
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GM3MPDN272880S | 2.8-8mm | F1.2-Close | 124.3°x65.2° -43°x24.2°(1/2.7") |
0.3m | Ø43.2x55 | 65g | CS | 3MP, Day&Night |
| GA3MPDN272880BS4 | 2.8-8mm | F1.2-360 | 124.3°x65.2° -43°x24.2°(1/2.7") |
0.3m | Ø43.2x55x60 | 75g | CS | 3MP, Day&Night |
| GA3MPDN2728130BS4 | 2.8-13mm | F1.4-360 | 124.3°x66.1° -26.7°x15.2°(1/2.7") |
0.3m | Ø47x71x66 | 95g | CS | 3MP, Day&Night |
| GA5MPDN27850BS4 | 8-50mm | F1.6-360 | 38.7°x28.6° -6.4°x4.8°(1/2.7") |
0.3m(f=8mm), 0.9m(f=50mm) | Ø47x60x75 | 150g | CS | 5MP, Day&Night,Aspherical, DC-Drive Auto Iris |
| GA3MPDN27850BS4 | 8-50mm | F1.6-360 | 33.5°x25.1° -5.6°x4.2°(1/3") |
0.3m | Ø44x63x74 | -g | CS | 3MP, Day&Night,Aspherical, DC-Drive Auto Iris |
1/2" Megapixel Day&Night Lenses
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GMMPDN23510S | 3.5-10mm | F1.6-22 | 108.3°x78.8°x143.3° -37.5°x28.1°x46.9° |
0.2m | Ø36.5x59 | 100g | CS | 3Megapixel,manual Day&Night, Aspherical |
| GAMPDN23510BS4 | 3.5-10mm | F1.6-360 | 108.3°x78.8°x143.3° -37.5°x28.1°x46.9° |
0.2m | 36.5x46x59 | 125g | CS | 3Megapixel,Day&Night, DC-Drive Auto Iris, Aspherical |
| GMMPDN24513CS | 4.5-13mm | F1.8-Close | 90.3°x66.6° -31.2°x24.0° |
0.5m | Ø39x59 | 150g | CS | 3Megapixel, Day&Night, manual Iris |
| GMMPDN29020S | 9-20mm | F1.6-22 | 42.3°x30.9°x55° -18.7°x13.9°x23.4° |
0.3m | Ø36.5x62 | 100g | CS | 3Megapixel,Day&Night, manual Iris, Aspherical |
| GAMPDN29020BS4 | 9-20mm | F1.6-360 | 42.3°x30.9°x55° -18.7°x13.9°x23.4° |
0.3m | 36.5x46x64 | 125g | CS | 3Megapixel,Day&Night, DC-Drive Auto Iris, Aspherical |
| GMMPDN21648CS | 16-48mm | F2-Close | 25.8°x19° -8.8°x6.4° |
4.15m | Ø40x73.5 | 150g | CS | 3Megapixel, Day&Night, manual Iris, |
| GMMPDN280800MCN | 8-80mm | F1.6-Close | 46.6°x34.3° -4.7°x3.6° |
0.1m | Ø58x591.5 | 400g | C | Day&Night, manual Iris |
| GAMPDN280800BC4-1 | 8-80mm | F1.6-360 | 46.6°x34.3° -4.7°x3.6° |
0.1m | Ø55x91 | 400g | C | Day&Night, DC-Drive Auto Iris, |
| GAMPDN210120BC4 | 10-120mm | F1.6-360 | 46.6°x34.7° -3.9°x3.1° |
1.5m | Ø60x62x125 | 360g | C | Day&Night, DC-Drive Auto Iris |
1/1.8" Megapixel Day&Night Lenses
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GM5MPDN184013C | 4-13mm | F1.5-Close | 105.4°x77.6° -33°x24.8° |
0.3m | Ø64.5x87.6 | 170g | C | 5MP,Day&Night, Manual Iris |
| GA5MPDN184013BC4 | 4-13mm | F1.5-360 | 105.4°x77.6° -33°x24.8° |
0.3m | Ø64.5x87.6 | 170g | C | 5MP,Day&Night, Auto-Iris, DC-Drive |
| GMMPDN181050S | 10-50mm | F2-Close | 40.5°x30.2° -8.5°x6.4° |
0.3m | Ø50x57 | 260g | C | 3MP,Day&Night, Manual-Iris |
| GAMPDN181050BS4 | 10-50mm | F2-360 | 40.5°x30.2° -8.5°x6.4° |
0.3m | Ø50x57x88 | 300g | C | 3MP,Day&Night, Auto-Iris, DC-Drive |
| GA5MPDN181250BS4 | 12-50mm | F1.4-360 | 34°x25.5° -8.5°x6.4° |
1m | Ø51x80x70 | 135g | CS | 5MP,Day&Night |
Megapixel zoom Auto IrisLens
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GAZMP31166BC4 | 11-66mm | F1.8-Close | 43.3°x33.0° -7.7°x5.8° (2/3") |
1.4m | Ø79x118.5 | 1000g | C | 3.6megapixel, Auto-Iris, DC-Drive |
Megapixel Day&Night Motorized Varifocal Zoom Lens
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GAZMPDN280800M | 8-80mm | F1.6-Close | 46.6°x34.3° -4.7°x3.6° (1/2") |
0.1m at 8mm | Ø83.5x81.5x91.5 | 600g | C | Megapixel,Motorized Varifocal,Day&Night |
Megapixel Motorized Zoom Lenses
| Item No. | Focal Length | Iris Range | Angle of View (H x V) |
MOD | Dimention (mm) |
Weight | Mount | Notes |
|---|---|---|---|---|---|---|---|---|
| GAZMPDN1616019M3P3 | 16-160mm | F1.9-22 | 42.7°x32.5° -4.6°x3.5° (1") |
1.7m | 100x101x208 | 1350g | C | Motorized Iris, Filter Thread;M=89,P=1 |
| GAZMPDN42465M | 24-65mm | F2-Close | 30.5°x22.9°x38.1° -11.2°x8.4°x13.8° (2/3") |
7m | 80x80.5x112.5 | 710g | C | Filter Thread;M=62,P=0.75, Day&Night, Mtorized Iris & DC-Drive available |
| GAZMPDN325750DCP | 25-750mm | F2.5-T170 | 19.76° - 0.69°(2/3") (Horizontal) |
5m | 132x121x400 | 6300g | C | Filter Thread;M=95mm,P=1, 2Megapixel, IR Day&Night, DC-Drive Auto Iris |
| GAZMPDN3501500DCP | 50-1500mm | F5-T110 | 10.01° - 0.34°(2/3") (Horizontal) |
5m | 132x121x400 | 6300g | C | Filter Thread;M=95mm,P=1, 2Megapixel, IR Day&Night, DC-Drive Auto Iris |
| GAZMP31166M | 11-66mm | F1.8-Close | 43.3°x33.0° -7.7°x5.8° (2/3") |
1.4m | Ø85x84.5x120 | 700g | C | 3.6megapixel |
| GAZMPDN31177M3P | 11-77mm | F1.6-16 | 43.3°x32.9° -6.6°x5.5° (2/3") |
1.5m | Ø80x80x121 | 800g | C | 2/3"format, 5mega, Day&Night |
| GAZMP310100M | 10-100mm | F1.4-Close | 47.5°x36.5° -5.0°x3.8° (2/3") |
1.2m | Ø80x70x125 | 700g | C | Megapixel,DC-Drive&Video Drive available |
| GAZMPDN189144 | 9-144mm | F1.6-360 | 43.2°x32.9° -2.9°x2.2° (1/1.8") |
2.5m | Ø87x84.5x167.5 | 1250g | C | 2Megapixel |
| GAZMP1808240 | 8-240mm | F1.7-360 | 48.6°x37.0° -1.75°x1.32° (1/1.8") |
1.8m | Ø100x100x248 | 1700g | C | 1/1.8"format, Filter Thread;option |
| GAZMP1812360 | 12-360mm | F2.6-360 | 32.9°x24.8° -1.17°x0.88° (1/1.8") |
1.8m | Ø100x100x269 | 1700g | C | 1/1.8"format, Filter Thread;option |
| GAZMPDN2125775 | 12.5-775mm | F3.5-360 | 28.77°x21.78° -0.47°x0.35° (1/2") |
5m | Ø150x135x367.5 | 5300g | C | Additional Integrated 2X Extender&Filter possible |
| GAZMP285850 | 8.5-85mm | F1.5-360 | 41.5°x31.3° -4.3°x3.3° (1/2") |
2.0m | Ø66x75.5x139.9 | 760g | C | 1/2"format |
| GAZMPDN280120 | 8-120mm | F1.8-360 | 43.2°x32.8°x52.9° -3.1°x2.3°x3.8° (1/2") |
1.5m | Ø80x87x157 | 740g | C | 1/2"format, Day&Night |
| GAZMP280136M | 8-136mm | F1.6-Close | 43.6°x33.4° -2.7°x2.2°(1/2") |
1.8m | Ø79x72.5x130 | 650g | C | 1/2"format,Video,DC and Motorized available |
| GAZMP210330 | 10-330mm | F1.5-560 | 1.13° -34.99° (1/2") |
2.9m | Ø122x125x261 | 2990g | C | 1/2"format, Filter Thread;M=105,P=1 |
| GAZMPDN210350 | 10-350mm | F1.6-360 | 43.3°x32.9° -6.6°x5.5° (1/2") |
4m | Ø121x125x279 | 3500g | C | 1/2"formatl,Day&Night |
| GAZMPDN1810500DC | 10-500mm | F4.6-360 | 35.12°x26.82°x43.04° -0.81°x0.61°x1.01° (1.8") |
3.8m | Ø90x905x175.5(cm) | 1600g | C | 1.8",DC-Drive Auto Iris only |
| GAZMP215500 | 15-500mm | F4-560 | 0.747° -23.185° (1/2") |
2.9m | Ø122x125x267 | 2900g | C | 1/2"format, Filter Thread;M=105,P=1 |
| GAZMPDN220700 | 20-700mm | F3.2-360 | 17.8°x13.4° -0.5°x0.4° (1/2") |
4m | Ø120x120.5x298.7 | 3500g | C | 1/2"format, Day&Night |
