Goyo Optical Inc,established in 1976, produces a wide variety of lenses used in Machine Vision and CCTV Surveillance.Lenses include Megapixel,Day and Night,1inch format,line scan with f-Mount,F0.95,3CCD camera,UV,Telecentric,TV Macro,Micro Head,Scanner and Projection Zoom. TV Macro Lenses

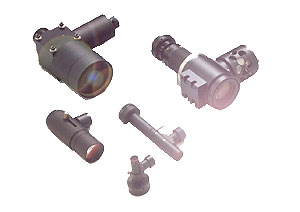

MANUAL ZOOM LENSES
Manual Zoom Lenses 2/3inch format
| Item No. | Magnifi cation |
W.D. (mm) |
Aperture | Depth of Field (mm) |
Object size at 1/2" (mm) |
Resolution Power(object) | NA | TV Distortion (LessThan) |
Notes |
|---|---|---|---|---|---|---|---|---|---|
| YXP3000 | x0.80-4.00 | 98 | F12-30 | 1-0.2mm | 6x8- 1.2x1.6 |
18-5μm | 0.033-0.067 | 0.1% | Straight |
| Z075 | x0.2-0.75 | 150 | - | 4-1mm | 24x32- 6.4x8.5 |
50-16μm | 0.012-0.018 | - | Straight |
| Z1 | x0.25-1.0 | 175 | - | 3.2-0.6mm | 19.2x25.6- 4.8x6.4 |
35-20μm | 0.003-0.025 | - | Straight |
| Z2 | x0.5-2.0 | 90 | - | 1.4-0.4mm | 9.6x12.8- 2.4x3.2 |
25-10μm | 0.021-0.045 | - | Straight |
| Z3 | x0.75-3.0 | 56 | - | 1-0.2mm | 6.4x8.5- 1.6x2.1 |
20-8μm | 0.031-0.068 | - | Straight |
| Z4 | x0.67-4 | 96 | - | 5-0.3mm | 7.1x9.5- 1.2x1.6 |
15.25-5.59μm | 0.022-0.06 | - | Straight |
| Z4D | x0.67-4 | 96 | - | 5-0.3mm | 7.1x9.5- 1.2x1.6 |
15.25-5.59μm | 0.022-0.06 | - | Coaxial |
| Z4.5 | x0.75-4.5 | 90 | - | 3.6-0.26mm | 6.4x8.5- 1.1x1.4 |
15.6-4.4μm | 0.035-0.050 | - | Straight |
| Z4.5D | x0.75-4.5 | 90 | - | 3.6-0.26mm | 6.4x8.5- 1.1x1.4 |
15.6-4.4μm | 0.035-0.050 | - | Coaxial |
| Z2-RA | x0.5-2.0 | 90 | - | 1.4-0.4mm | 9.6x12.8- 2.4x3.2 |
25-10μm | 0.021-0.045 | - | Straight, Right Angle |
| Z4.5-RA | x0.75-4.5 | 90 | - | 3.6-0.26mm | 6.4x8.5- 1.07x1.42 |
15.6-4.4μm | 0.035-0.050 | - | Straight, Right Angle |
| Z6-1 | x1-6 | 60 | - | 0.96-0.05mm | 4.8x6.4- 0.8x1.06 |
11.56-4.09μm | 0.029-0.082 | - | Straight |
Manual Zoom Lenses 1/2inch Format
| Item No. | Magnifi cation |
W.D. (mm) |
Aperture | Depth of Field (mm) |
Object size at 1/2" (mm) |
Resolution Power (object)(μm) |
NA | TV Distortion (LessThan) |
Notes |
|---|---|---|---|---|---|---|---|---|---|
| Z04 | x0.13-0.4 | 200 | - | 42-4.8 | 36x48 - 12x16 |
120-40 | 0.009-0.026 | - | Straight |
| Z08 | x0.1-0.8 | 195 | F7.5-C | 40-0.6 | 48x64- 6x8 |
150-15 | 0.005-0.04 | - | Straight |
| ZS | x0.6-4.8 | 36 | 22.2-22.6 | 2-0.2 | 8x10.6- 1.0x1.3 |
17-6 | 0.015-0.107 | - | Straight |
